Army Scientists Develop Tech to Build 3D Printed Parts in Battlefield

Scientists at the United States Army Research Lab (ARL) have developed a dual-polymer filament that could be used by soldiers to build durable 3D printed parts to replace broken military hardware components while on the battlefield.

"In the future we can imagine soldiers deployed overseas collaborating with engineers in the US, allowing new hardware concepts to be designed and then sent as digital files to be coverted into physical prototypes that the soldiers can use the same day. This paradigm shift could allow us to innovate at a much higher speed, and be keenly responsive to the ever-changing battlefield,” said Dr. Eric Wetzel, ARL's research area leader for Soldier materials.

In the past, troops have either lugged replacement parts around or ordered them from warehouses thousands of miles away, only to wait weeks for them to arrive.

“But with dual-polymer 3D printed parts -- developed by scientists at the US Army Combat Capabilities Development Command Army Research Laboratory, or ARL -- Soldiers could be a few clicks away from swapping out broken pieces and heading back to the fight within hours,” ARL said in a statement.

The printing technology comes on the heels of Secretary of the Army Ryan McCarthy pushing an advanced manufacturing policy last October, intended to enhance supply chains in the field.

The filaments are likely to be transferred to the soldiers in this year for evaluation. “By summer, we hope to have samples of the filament distributed to Army transition partners. Based on their feedback, ARL could ramp up production -- with help from industry partners -- and have it in the hands of Soldiers within the calendar year,” Wetzel added.

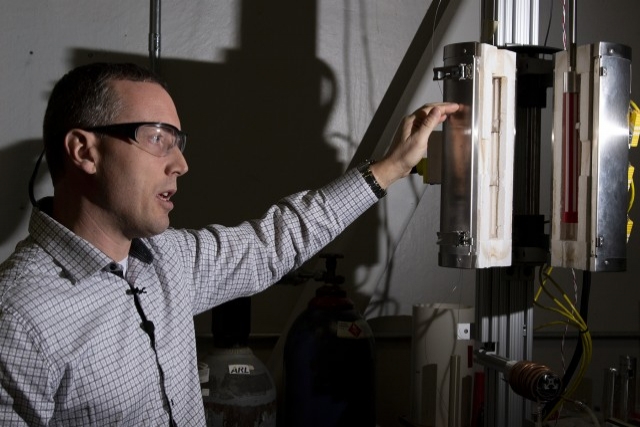

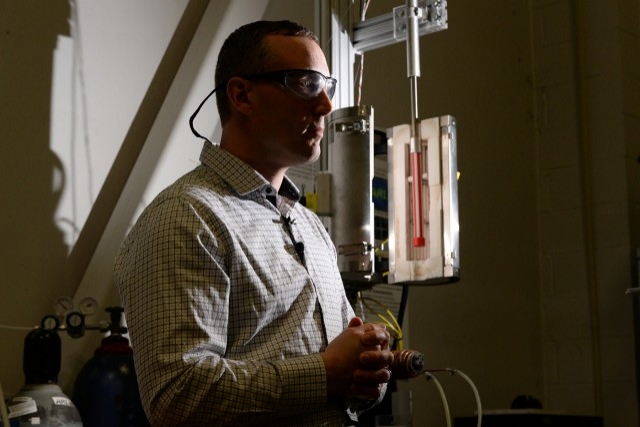

The dual-polymer filament combines acrylonitrile butadiene styrene, or ABS, with polycarbonate, or PC. A critical design feature of the filament is that the ABS and PC phases are not simply mixed together, a common approach for creating blended polymers. Instead, a special die-less thermal drawing process developed by ARL is used to create an ABS filament with a star-shaped PC core. Once coupled, the filament is used as feedstock in a desktop fused-filament fabrication, or FFF, printer to create 3D prints with a heavy-duty ABS/PC meso‐structure.

FFF printers work with a heated nozzle that emits thin layers of melted plastic, similar to molten glass. The filament is deposited onto a print bed, one layer on top of another until it forms the 3D printed part. In order to fabricate a unique part, the nozzle, print bed, or both move while the hot plastic streams down.

The two polymers found in the new filament technology have distinct melting temperatures, Wetzel said.

After the solid bodies are initially printed, they are put in an oven to build strength. During this annealing process, the deposited material layers fuse together while maintaining their geometry and form. This stability is caused by the higher temperature resistance of the built-in framework.
